TSW-700
Steering Wheel

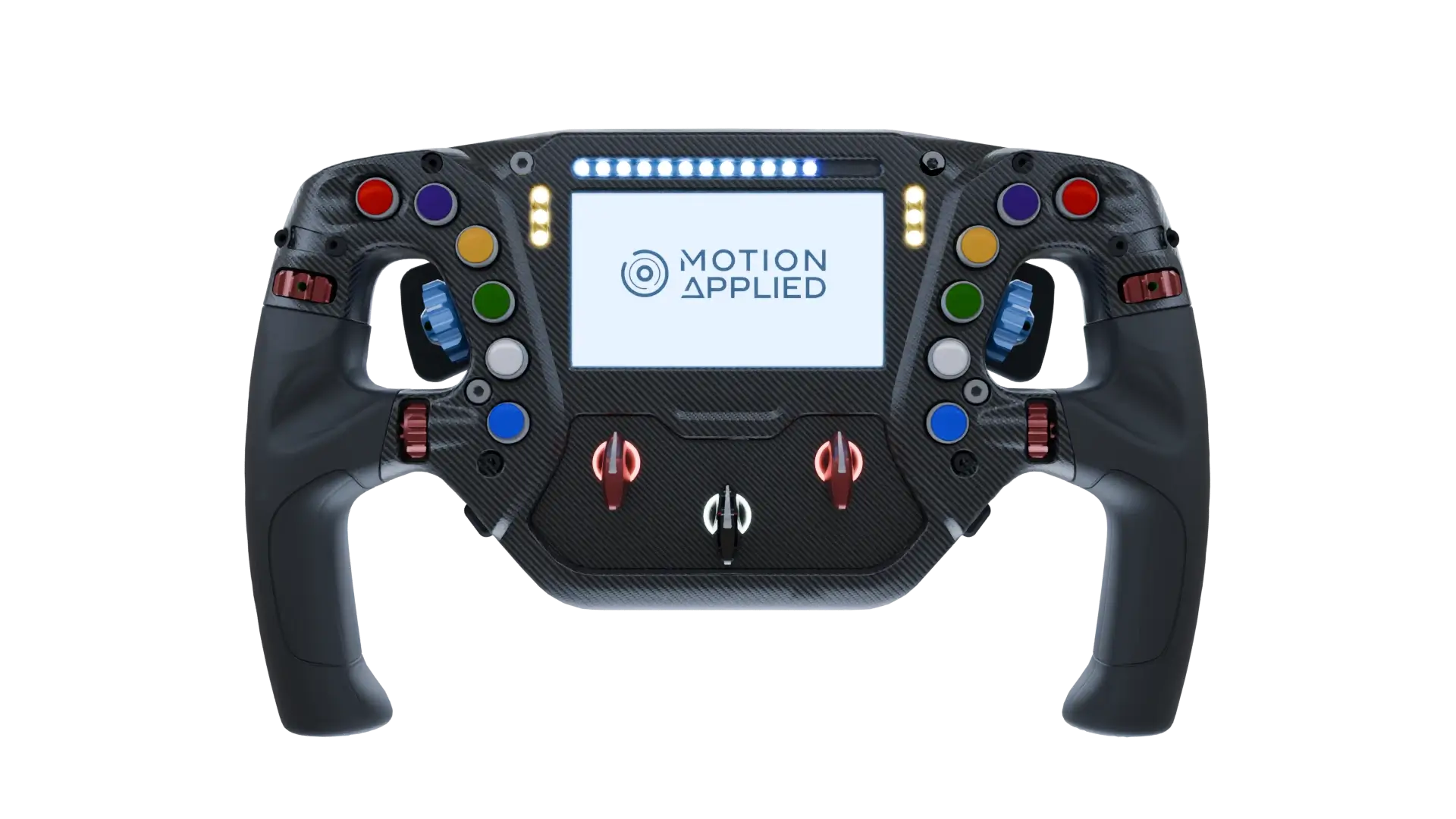

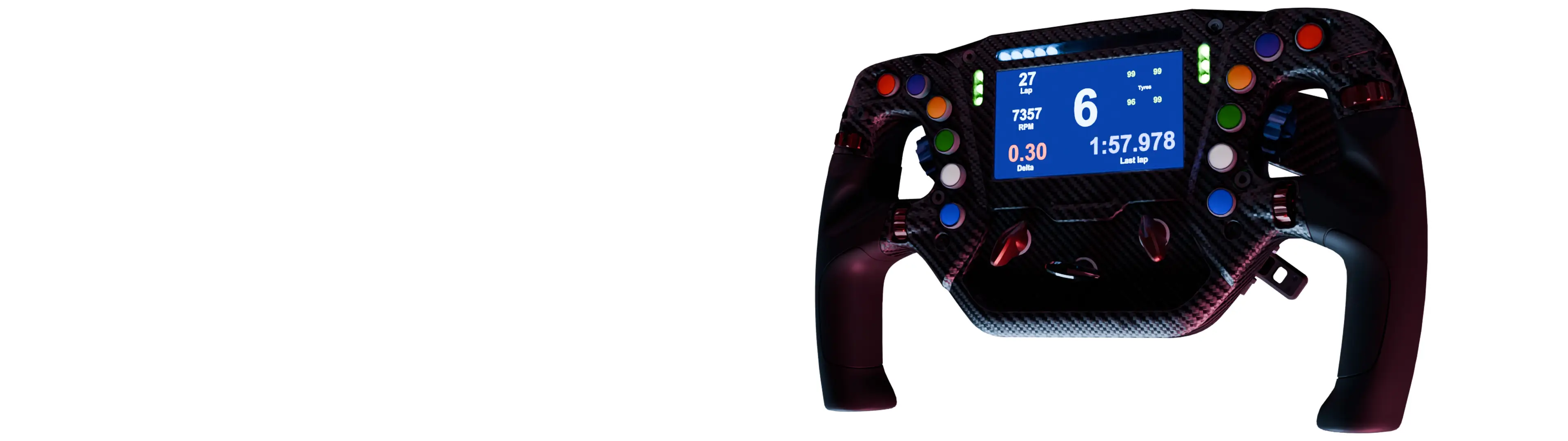

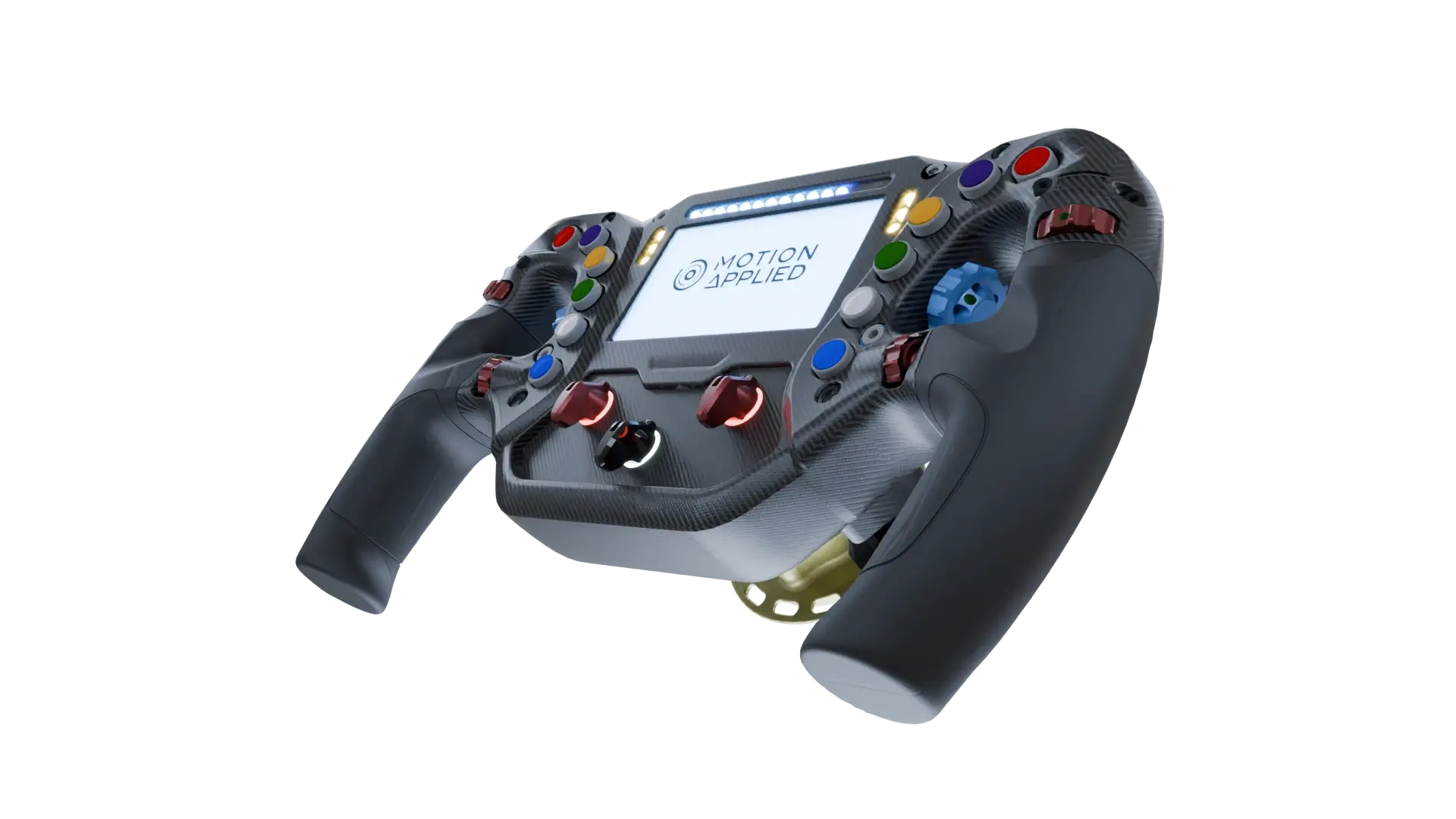

The TSW-700 is a lightweight carbon fibre steering wheel that can be customised with either an SIU-320 or SIU-700 Steering Wheel Interface Unit and PCU-8E or PCU-700 Driver Display Unit. It is designed to connect to a host ECU via CAN or CAN FD to both present the driver with information as well as transmit data of the potentiometers and switches. It has a fully configurable high resolution 4.3" backlit IPS LCD true colour display and LED lamps. The display is suitable for use in direct sunlight and at night.Documents
Showcase
Key features
Compatible with various Quick Releases
Data Display and warning lamps
Brightness adjustable via CAN message for low-light conditions
Option for Backlit buttons and rotaries
Fifteen RGB high intensity LEDs for a range of user-configurable colours
Two sets of 3 side RGB high intensity LEDs with current monitoring
Sixteen gauge types for displaying data, include bar tacho, rev lights and variable text
Alarm pages or user-configurable text warnings can be triggered by CAN messages

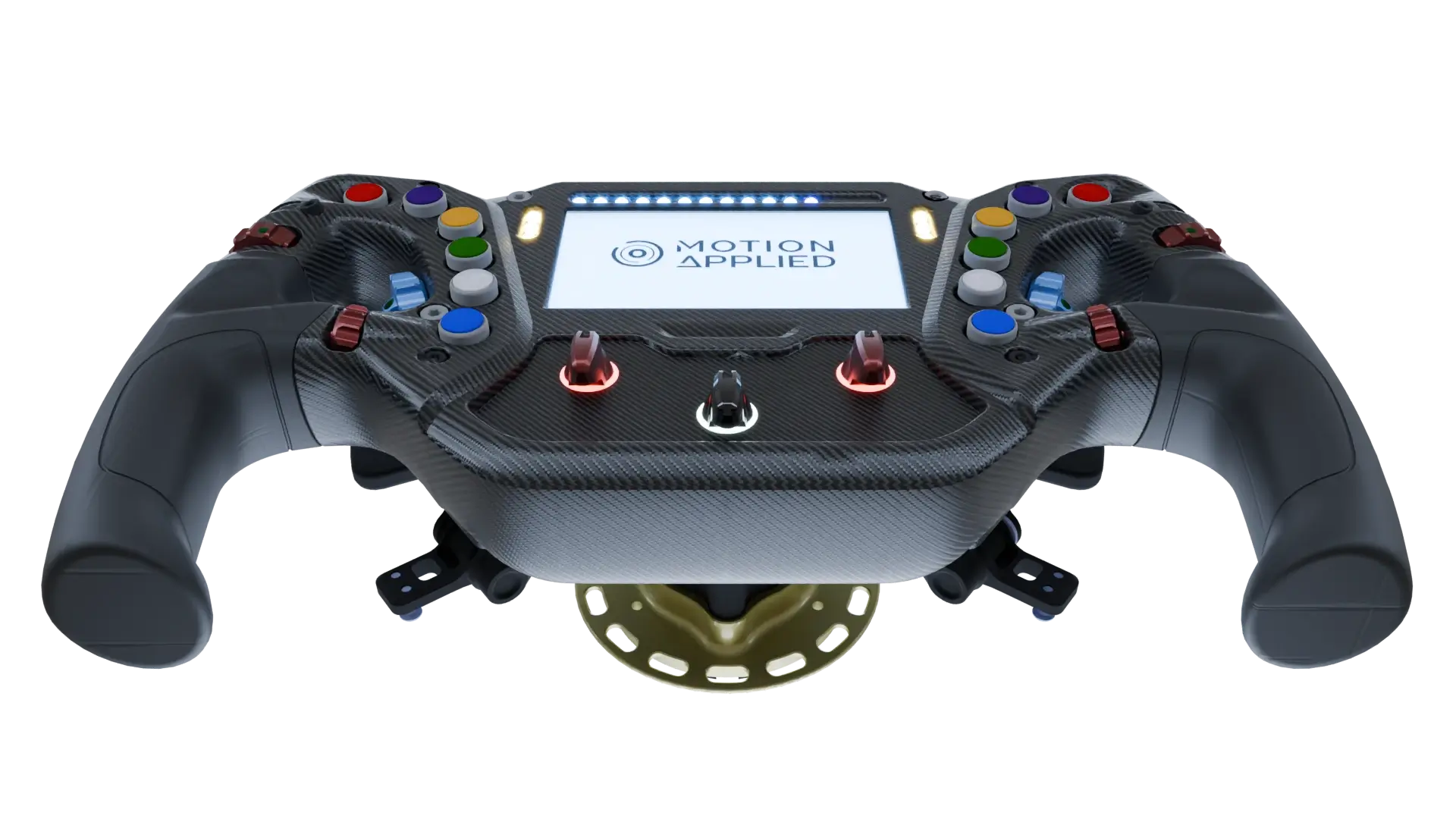

Twelve metal dome buttons on front face

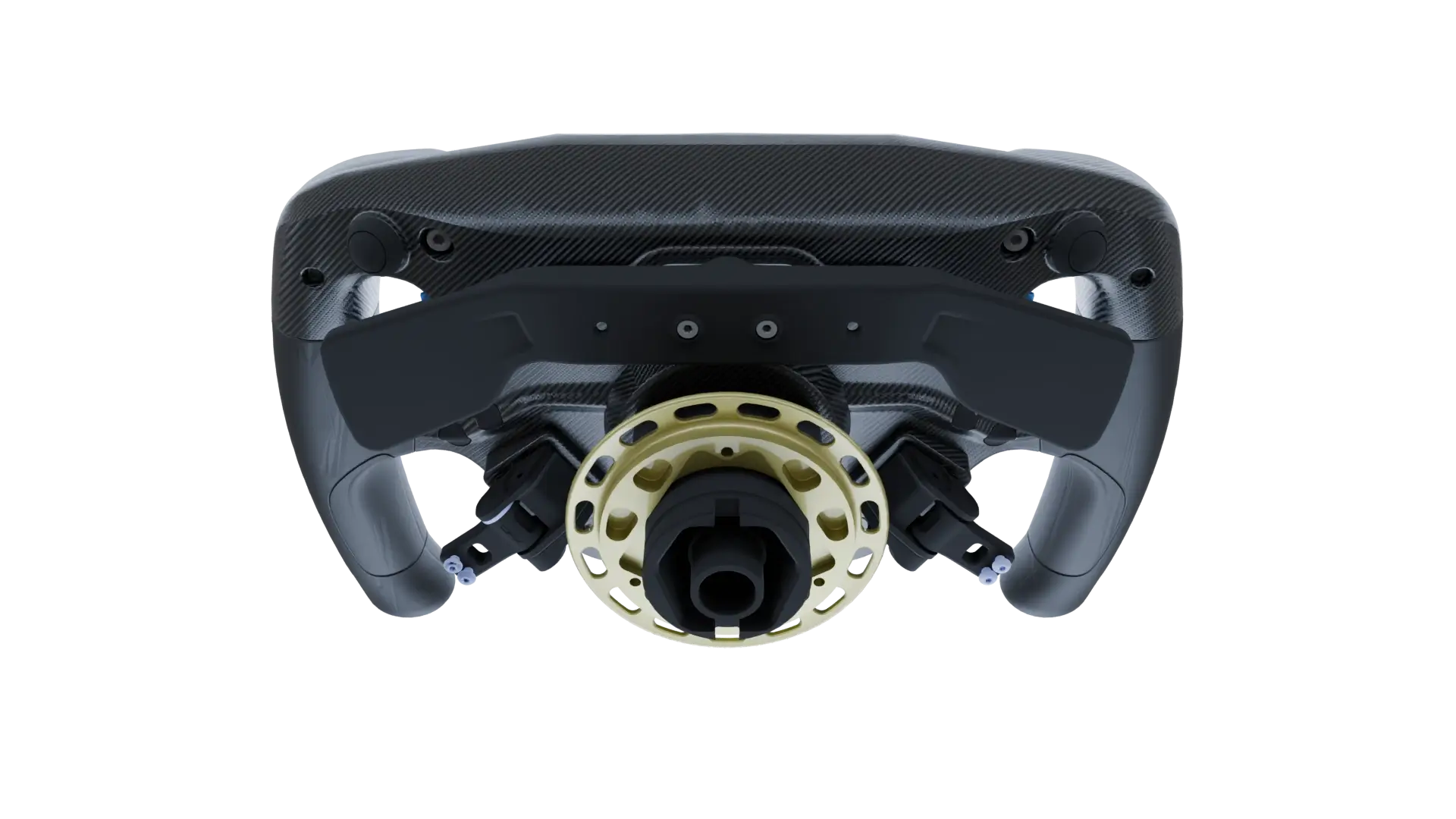

Six button inputs on rear face, 2 for the switch modifiers, 2 for the gearshift paddles and 2 for gearshift redundancy

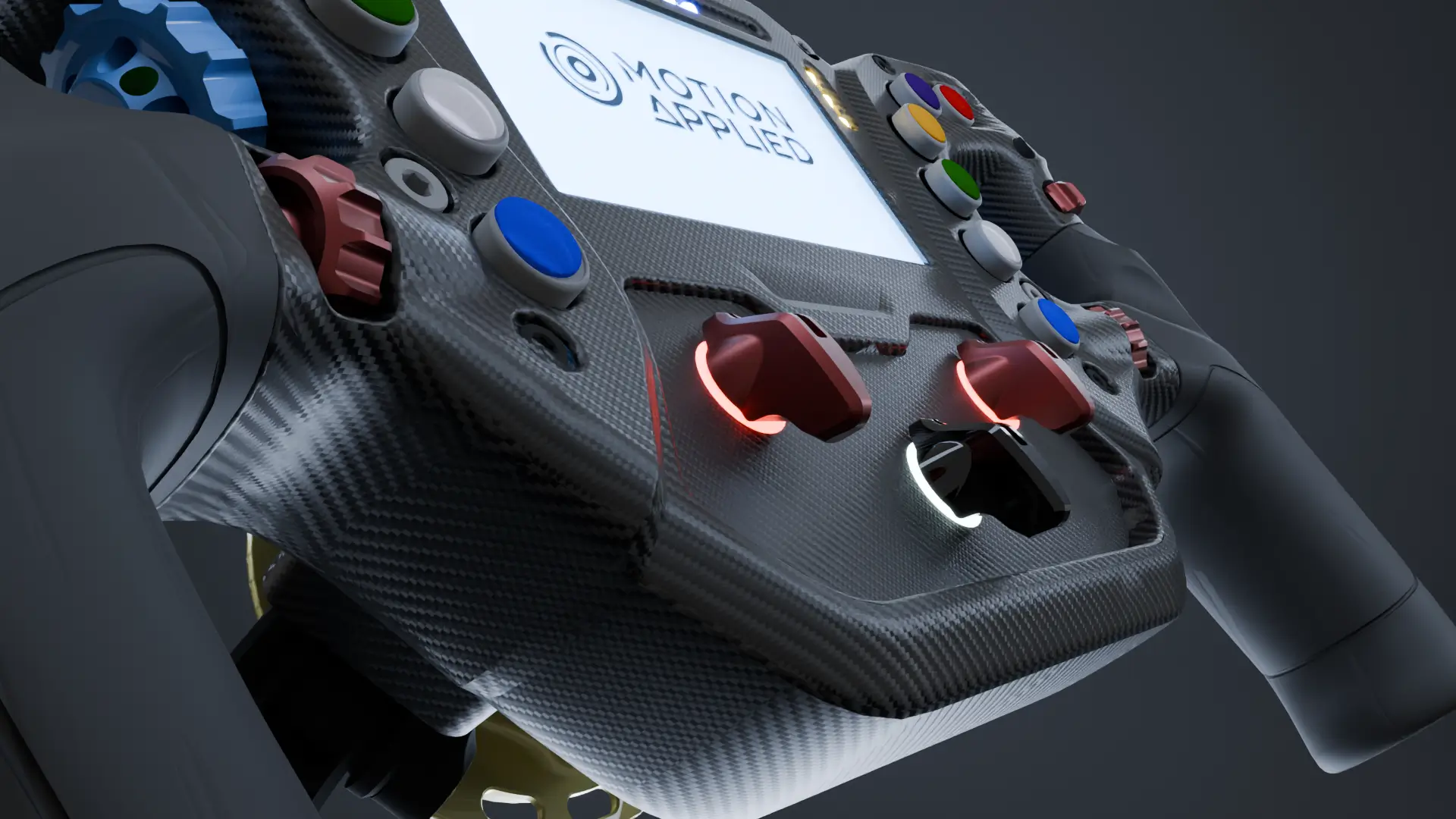

Three 14-position rotary switches on front face
Six 12-position thumb wheel rotary switches
Two analogue rotary position sensors in the pivot for the clutch/regen paddles
Universal paddle mounts to allow teams to customise the lower paddle grips as necessary to suit driver
Push/pull design of gear shift paddle allows the driver to change gear either up or down with a single finger depending on which hand is on the wheel
Amplified strain gauge input available for steering wheel torque measurement
Diagnostic measurements of internal temperature and supply voltages
Communications
One CAN interface configurable as CAN-FD (4Mbps maximum) or CAN 2.0 (1Mbps) with no internal termination.
One USB interface for configuration only.
Ordercodes
- O 030 021 001 000
- TSW-700 Steering Wheel
