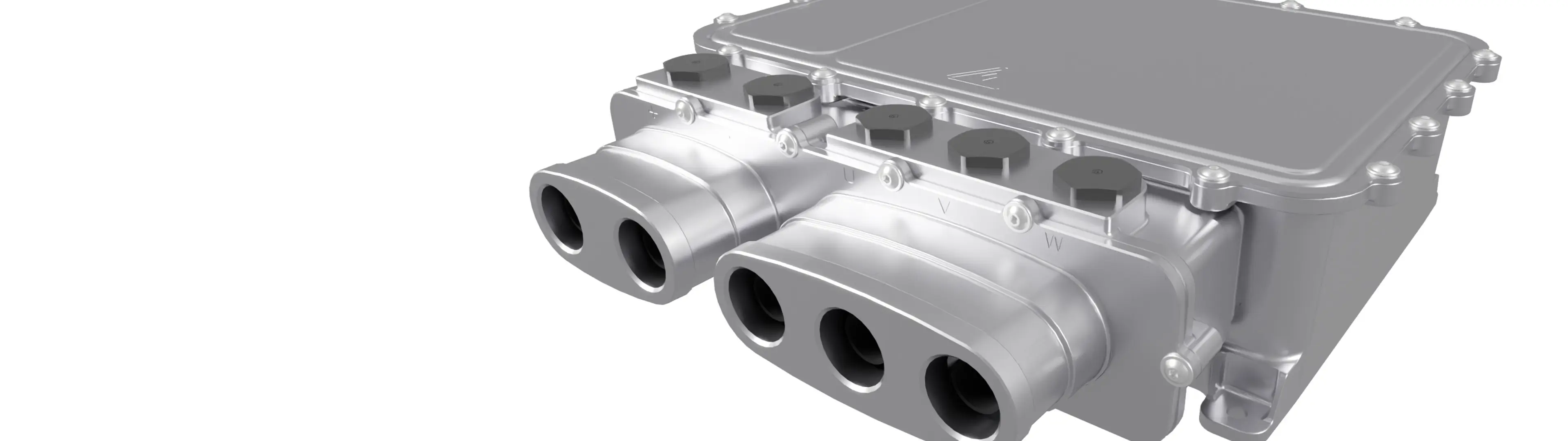

Inverter against a blank background

MCU-600 800V SiC Inverter

The market-leading 800V Silicon Carbide Inverter powering global electrification.

Documents

MCU-600 800V SiC Inverter Product Summary
MCU-600 Datasheet

Electrification is accelerating across automotive, marine, aerospace, and defence. While each market presents unique demands, the pioneers driving this transition face a shared set of challenges: extending vehicle range, reducing system cost, and achieving meaningful product differentiation.

To meet these challenges head-on, Motion Applied developed MCU-600; engineered for exceptional efficiency, power density, and flexibility. Backed by decades of motorsports and automotive engineering expertise across mechanical, hardware, and software domains, MCU-600 delivers:

  • Over 7% increase in vehicle range through ultra-high efficiency and system downsizing

  • Lightweight powertrain systems enabled by industry-leading power density

  • Lower system costs through design optimisation and advanced manufacturing

  • Differentiated control experiences powered by patented software features

Alongside ourMCU-600 sits MCU-X, the integrated inverter platform. MCU-X leverages the same market-leading hardware and software design on a flexible platform that can be re-engineered with bespoke packaging for direct integration into your powertrain or vehicle.


Showcase


Highlights

MCU-600, combined with our Calibration Services or OpenCal solution, offers market leading performance tailorable across various applications and use cases:

Voltage

Up to 900V

Peak Current

>588Arms*

Continuous Current

320Arms**

Switching Frequency

1-32kHz

Efficiency

97% typical, over 99% peak

Dry Mass

6.4kg

Volume

4.85L

Safety

ISO26262


* Using water/glycol coolant. 2 sec duration at 70degC, 8 sec duration at 50 degC
** Using water/glycol coolant at 70

Cutting-edge Hardware Design

Motion Applied's SiC inverter family leverages the latest in hardware innovation to push the boundaries of performance, efficiency, and packaging.

At the heart of our MCU family is a next-generation 800V Silicon Carbide power module from our partners at STMicroelectronics. Combined with advanced mechanical and hardware design, this enables:

  • Minimised heat losses and advanced thermal management, achieving peak efficiency of over 99%

  • Up to 75kVA/kg and 125kVA/L, the most power dense inverter on the market

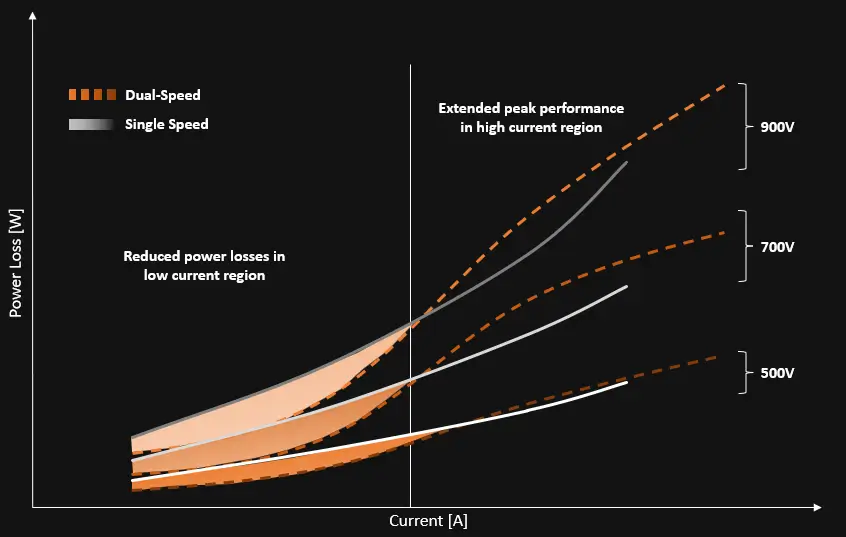

  • Dual-speed switching capability, delivering enhanced efficiency and sustained peak performance across a wider operating range

This combination of cutting-edge components and engineering precision allows our MCUs to meet the demands of high-performance electrified systems, without compromise.
